Fast DC Charger

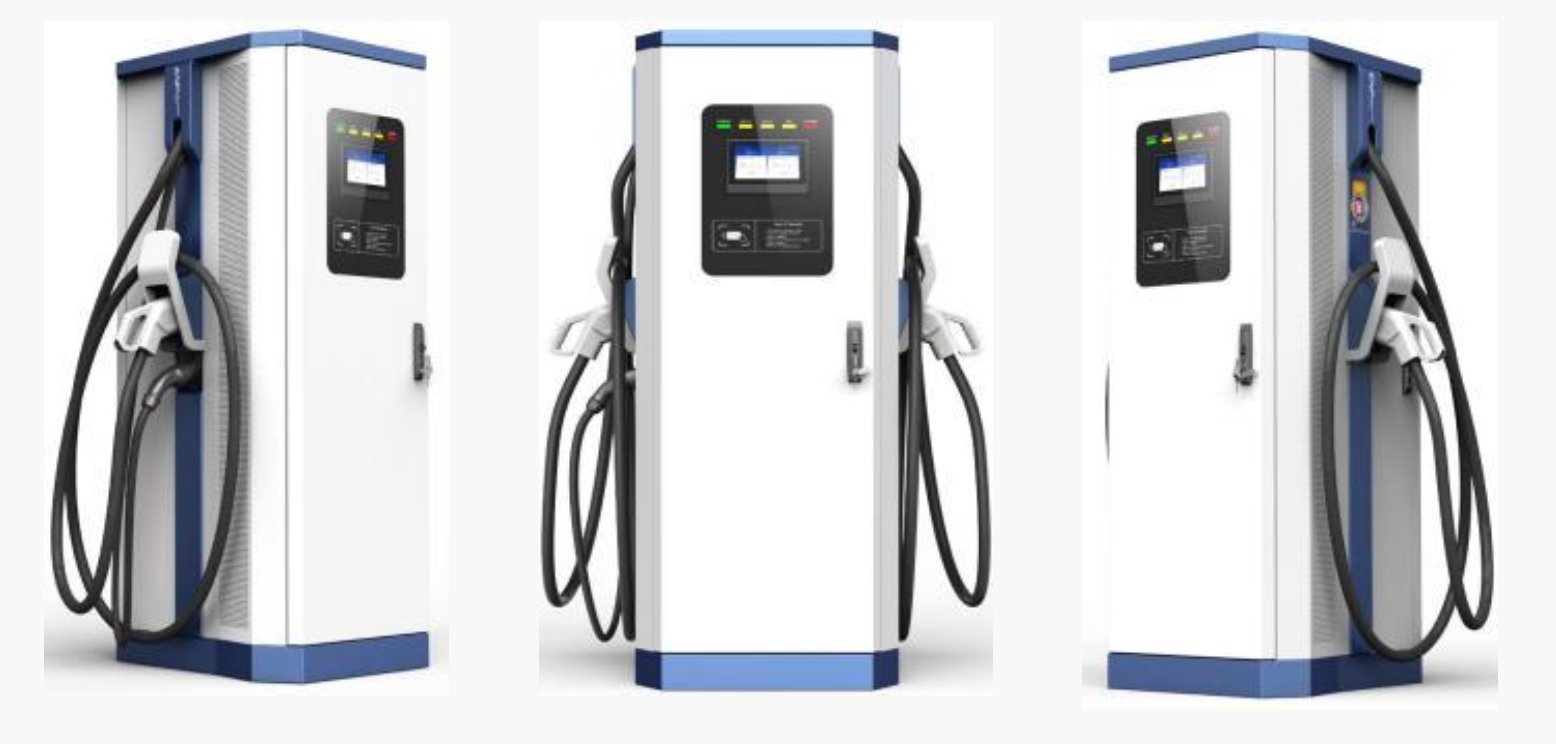

NEAOCDC-180100020002-W201-G (CCS / CHAdeMO/ GBT 180KW, AC 22KW)


NEAOCDC-180100020002-W201-G Fast DC charger isspecially designed forhigh protection and high reliability applications with CCS/CHAdeMO /GBT/AC Type2 standard EV charging.


Integrated design with IP55 standard for harsh environment applications. User friendly interface with 7"TFT touch screen LCD. Easily configure the power from 60 to 180KW, and compatible with the voltage from 500V to 1000V. OCPP 1.6J support.


Full safety function with output contactor and fuse, EPO, SPD, RCD, leakage switch, insulation detector protection.


Optional Cool Ring TM function realize the power transfer between the two chargers which can get max 360KW in one charger.


Power can also transfer between the two DC connectors, and also can output at the same time for the two DC connectors.


Multiple charging modes: Auto basis, Time basis, Amount basis, Energy basis, SOC basis.


Multiple power distribution modes: Stand-alone, Current-switch, Plug-switch, Full-hold, Master-slave.


Internal high precision AC energy meter and DC energy meter.


LAN and optional LTE wireless support, RFID authorization and Mobile App payment support.

NEAOCDC-150100020003-W201-G

NEAOCDC-150100020002-W201-G

NEAOCDC-150100020002-W201-G

NEAOCDC-150100020001-W201-G (CCS/GBT/CHAdeMO/160KW)

CCS1/CCS2/GBT/CHAdeMO support.


Integrated design with IP55 standard for harsh environment applications. User friendly interface with 7"TFT touch screen LCD. Easily configure the power from 120 to 150KW, and compatible with the voltage from 200V to 1000V. OCPP 1.6J support.


Full safety function with output contactor and fuse, EPO, SPD, RCD, leakage switch, insulation detector protection.


Power can also transfer between the two DC connectors, and also can output at the same time for the two DC connectors.


Multiple charging modes: Auto basis, Time basis, Amount basis, Energy basis, SOC basis.


Multiple power distribution modes: Stand-alone, Current-switch, Plug-switch, Full-hold, Master-slave.


Internal high precision AC energy meter and DC energy meter.


LAN and optional LTE wireless support, RFID authorization and Mobile App payment support.

NEAOCDC-120100020003-W201-G (CCS/CHAdeMO/GBT 120KW, AC 22KW)

CCS1 or CCS2, CHAdeMO and GBT support, AC Type2 cable or optional AC Type2 socket support.


Integrated design with IP65 standard for harsh environment applications. User friendly interface with 7"TFT touch screen LCD. Easily configure the power from 60 to 120KW, and compatible with the voltage from 500V to 750V. OCPP 1.6J support.


Full safety function with output contactor and fuse, EPO, SPD, RCD, leakage switch, insulation detector protection.


Power can also transfer between the two DC connectors, and also can output at the same time for the two DC connectors.


Multiple charging modes: Auto basis, Time basis, Amount basis, Energy basis, SOC basis.


Multiple power distribution modes: Stand-alone, Current-switch, Plug-switch, Full-hold, Master-slave.


Internal high precision AC energy meter and DC energy meter.


LAN and optional LTE wireless support, RFID authorization and Mobile App payment support.
